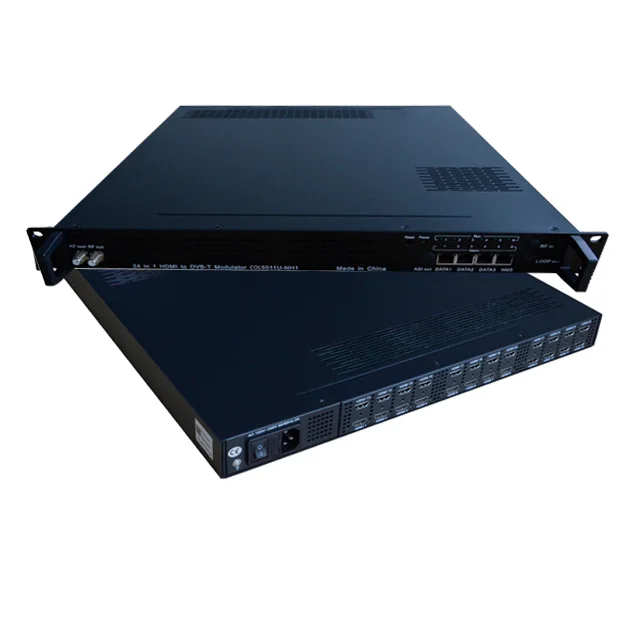

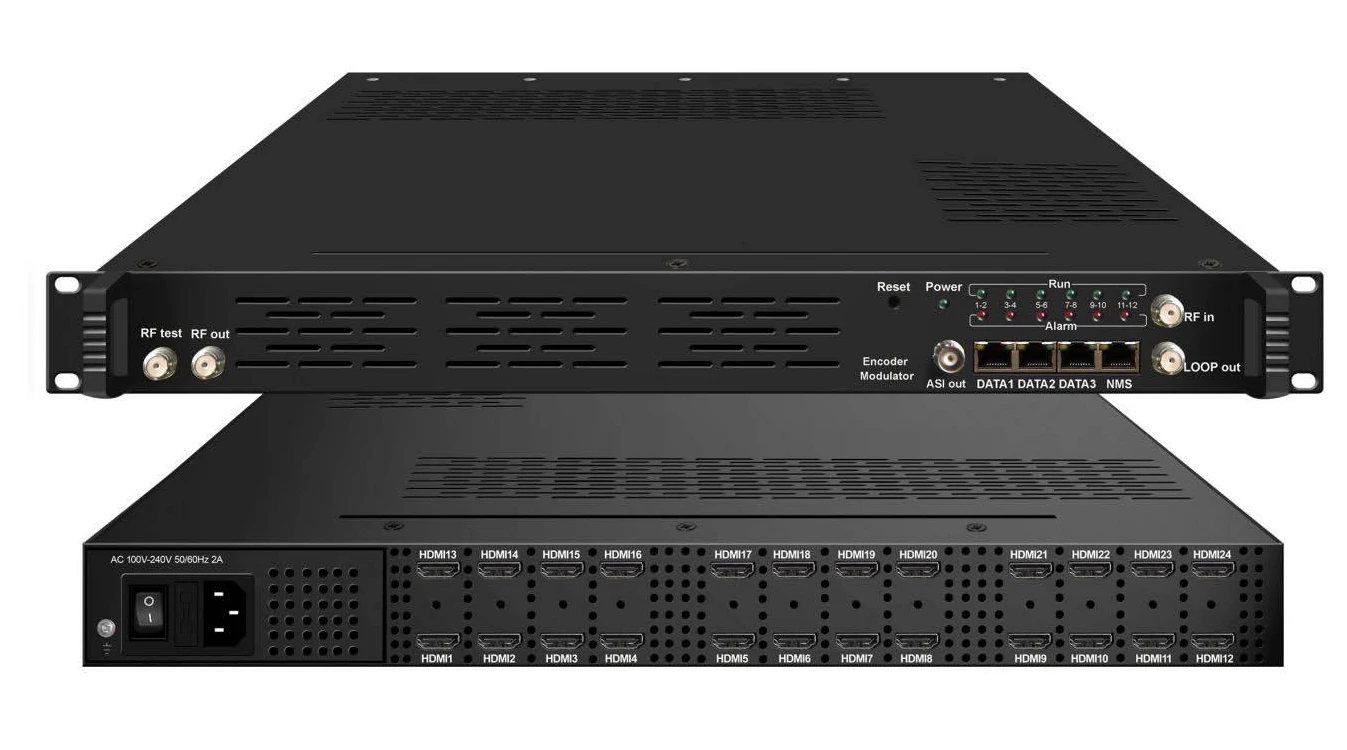

COL5011U-NH1 is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 8/12/16/20/24 HD input, one DVB-C (ATSC optional) tuner input and maximum 512 IP input with Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T RF out with 8 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers through Data2 (GE) output port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…



Technical Specification

Input	8/12/16/20/24 HD inputs for option 1 DVB-C(ATSC optional) Tuner for re-mux, F type interface 512 IP input over UDP and RTP, DATA1, RJ45—DVB-C RF out 256 IP input over UDP and RTP, DATA1, RJ45—DVB-T/ATSC RF out 192 IP input over UDP and RTP, DATA1, RJ45—ISDB RF out
Video	Resolution	Input		1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		Output		1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
	Encoding	MPEG-4 AVC/H.264
	Bit-rate	1Mbps~13Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IP…P (P Frame adjustment, without B Frame )
Audio	Encoding	MPEG-1 Layer 2
	Sampling rate	48KHz
	Resolution	24-bit
	Audio Gain	0-255 Adjustable
	Bit-rate	64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Multiplexing	Maximum PID Remapping	180 input per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
		Generate PSI/ SI table automatically
Scrambling	Maximum simulcrypt CA	4
	Standard	ETR289, ETSI 101197, ETSI 103197
	Connection	Local/remote connection
Modulation	DVB-C	QAM Channel			16 non-adjacent carriers output (maximum bandwidth 192MHz)
		Standard			EN300 429/ITU-T J.83A/B
		MER			≥40db
		RF frequency			50~960MHz, 1KHz step
		RF output level			-20~+10dbm (87~117 dbµV), 0.1db step
		Symbol Rate			5.0Msps~7.0Msps, 1ksps stepping
					J.83A	J.83B
		Constellation			16/32/64/128/256QAM	64/256 QAM
		Bandwidth			8M	6M
	DVB-T	Standard			EN300744
		FFT mode			2K,4K, 8K
		Bandwidth			6M, 7M, 8M
		Constellation			QPSK, 16QAM, 64QAM
		Guard Interval			1/4, 1/8, 1/16, 1/32
		FEC			1/2, 2/3, 3/4, 5/6, 7/8
		MER			≥42 dB
		RF frequency			50~960MHz, 1KHz step
		RF out			8 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20~ +10 dBm (87~117 dbµV), 0.1db step
Stream output	1 ASI output as mirror of one of RF output carriers 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface

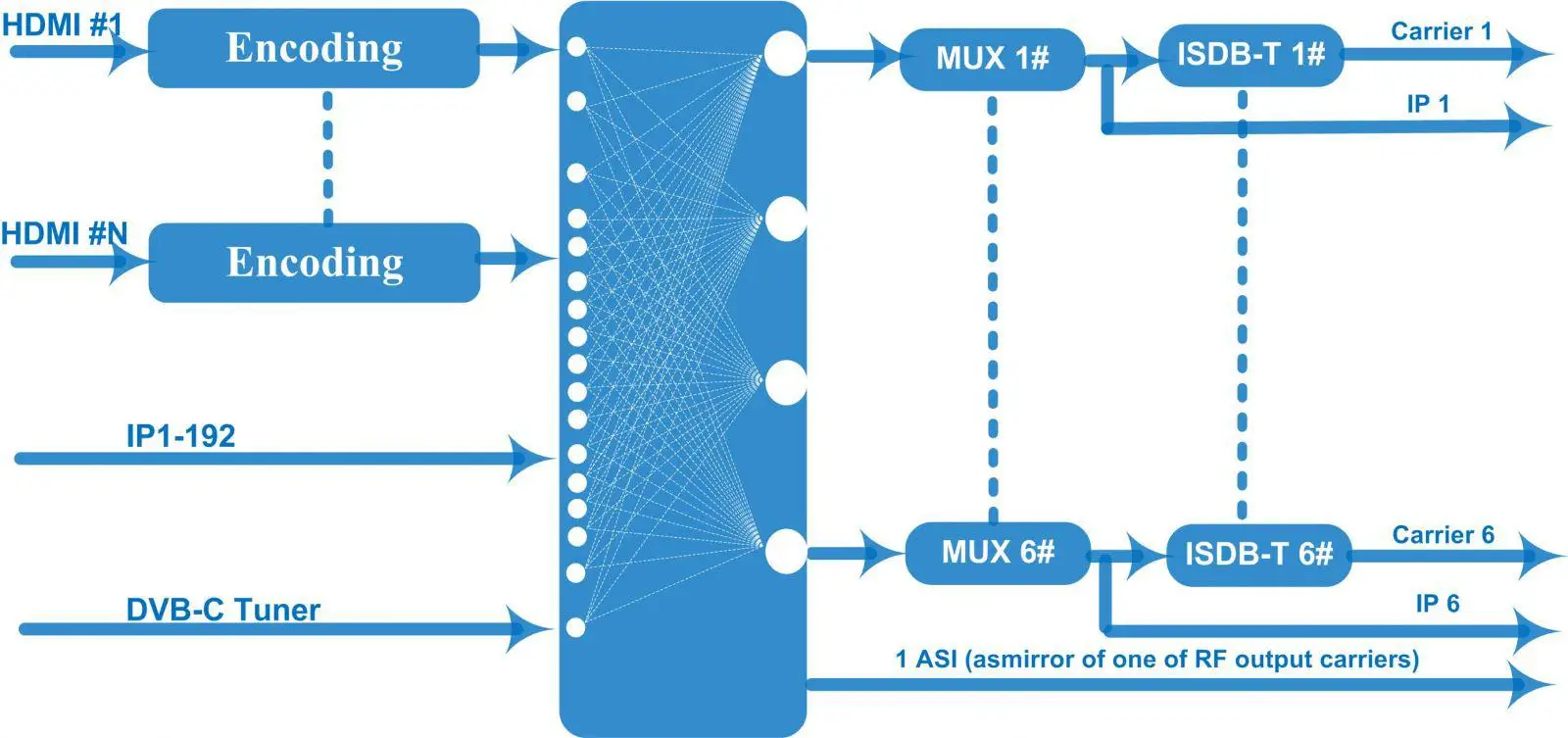

Working Principle for 16HD RF modulator ISDB-T ATSC DVB-T QAM out
