Huawei AR3260 3g 4g wireless router with 4 sim card slot 4g bonding tp-link router

For the latest prices and online deals click here >>



Product characteristics
1	Carrier-Class Reliability	The device provides hot swappable interface cards, standby SRU, power module, fan module, and optical module, ensuring carrier-class reliability. The ARs are designed to provide quality service and comply with telecommunication standards. The ARs protect networks against attacks. The ARs support in-service patching so that the system software can be upgraded during system operation. The AR2240, AR2240C, AR3670, and AR3260 support redundant power supply units. If one power supply unit is faulty, the AR2240 and AR3260 will still be able to operate.\ The AR3260 provides dual SRUs in redundancy mode. When a fault occurs on the control, forwarding, or switching plane, services can be smoothly switched to the standby SRU.
2	Service Integration Capability	The AR series routers integrate various services of routers, switches, and wireless devices, including voice, firewall, WLAN, 3G/LTE, and VPN.
3	Hardware Extensibility	The ARs provide the highest port density in the industry and flexible slot combination, allowing enterprise customers to connect to LAN, WAN, or wireless networks. The ARs provide the most economical enterprise network solutions. The ARs support flexible slot combination. For example, two SIC slots can be combined into a wide SIC (WSIC) slot, two SIC slots and one WSIC slot below can be combined into one XSIC slot by removing guide rails, and two multiple-function slots (MFSs) can be combined into an SRU slots by removing the guide rail between them.
4	Remote Maintenance Capability	In addition to one-stop deployment, plug and play capability, and remote commissioning functions, the ARs manage the customer premises equipment (CPE) remotely. The remote maintenance function improves efficiency and greatly reduces maintenance costs.



Main specifications

WAN Speed with Services*** Up to 2 Gbit/s (SRU40), 4 Gbit/s (SRU80), 2 Gbit/s (SRU100E), 9 Gbit/s (SRU200), and 11 Gbit/s (SRU400) Fixed WAN Ports SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo + 2 x GE SFP SRU200: 4 x GE Combo + 2 x 10 GE SFP+ SRU400: 4 x GE Combo + 2 x 10 GE SFP+ Slots SIC slots: 4 WSIC slots (default/maximum): 2/4 XSIC slots (default/maximum): 4/6 Reliability 1:1 redundancy of main control board QoS Hardware-accelerated, hierarchical QoS Wireless Controller Integrated in software Maintenance All interface cards support hot-swapping U-disk deployment supported Power Supply AC: 100V to 240V, 50 Hz/60 Hz DC: –48V to –60V Redundant power supply: internal AC and DC Rack Height 3 RU Dimensions (W x D x H) 442 mm x 470 mm x 130.5 mm



AR3260 HUAWEI ROUTER introduction
High-performance, scalable access routers offering integrated switching and routing for low TCO, with comprehensive management and security features for large-scale enterprise networks.   Non-blocking architecture with dual control and forwarding boards provide resilient access for converged voice, data, and multimedia communications. Millisecond fault detection and dynamic link backup ensure uninterruptable service, and hot-swappable line cards allow upgrades without impacting users.   Open Service Platform (OSP) support ensures compatibility with third-party products, protecting existing investments and further improving ROI.
Main Advantages
1. Integrated Applications Reduce TCO	2. Better Experience, Business Continuity	3. Easy O&M
The AR3200 integrates routing, switching, voice, security, and WLAN functions and constantly evolves to meet enterprises’ diversified service requirements.	The AR3200 uses the multi-core design for non-blocking service forwarding, supports hot-swappable cards, detects faults in milliseconds, and provides backup links.	Unified network management, and visualized devices, traffic, quality, and services, simplifies O&M.

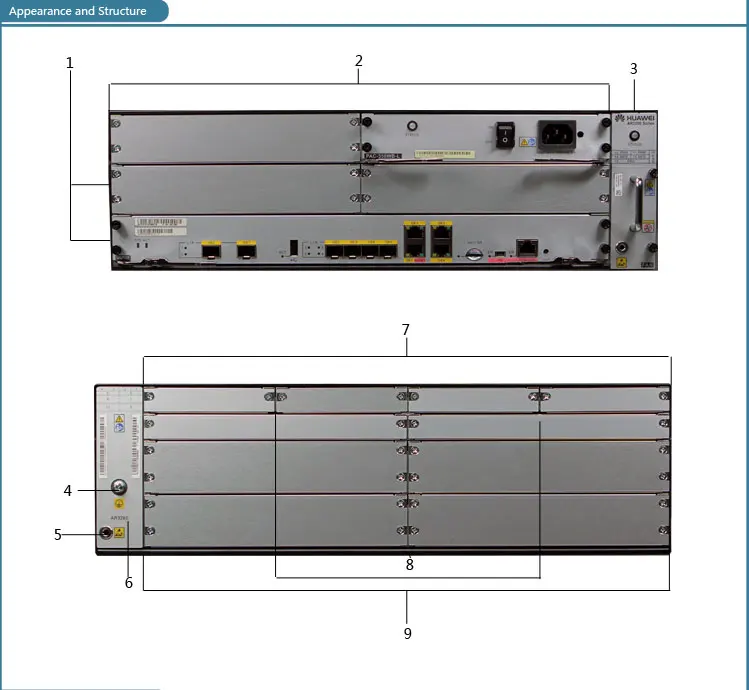

1.	Two SRU slots Applicable SRUs: SRU40 SRU60 SRU80 SRU100 SRU200 SRU400 SRU100E SRU200E	2.	Two power module slots Applicable power modules: 350 W AC Power Module 350 W DC Power Module 850 W AC PoE Power Module NOTE: AC and DC power modules cannot be used together in a router.
3.	Fan module slot	4.	Ground point
5.	ESD jack	6.	Product model silkscreen
7.	Four SIC slots	8.	Two WSIC slots
9.	Four XSIC slots



Te airflow is left to right, Cold air flows into the router from the left side and is exhausted from the right side, taking away heat generated by the router.
